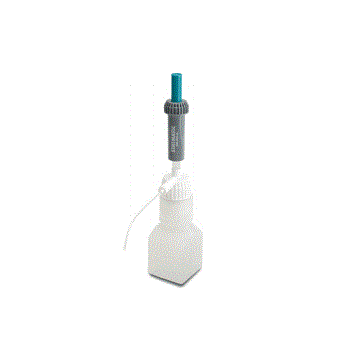

StatMatic
The Number One Bottle Top Dispenser for Clinical Instruments

The StatMatic bottle top dispenser's ability to dispense up to one time per second, easy customization of volumes, and ability to fit precise applications, have made it an industry leader. The StatMatic bottle top dispenser is also an ideal laboratory dispenser.

Contact Us
Request a Quote Request Service, Parts or Support
Share

Description

  • With accuracy and precision of +/-1% at full stroke, the StatMatic bottle top dispenser offers dependable performance.
  • Constructed of polypropylene, Teflon®, glass, and ceramics, the StatMatic bottle top dispenser has no exposed glass that can break and requires minimal maintenance.
  • The StatMatic bottle top dispenser is compatible with most reagents and chemicals and is designed so that even protein-based reagents won't cause sticking.
  • The filtered air vent keeps liquids free of contaminants.Priming line allows recirculation into the dispenser port without removing the bottle.
  • The StatMatic bottle top dispenser's internal volume calibration rings allow volume changes without reducing accuracy.

For volumes not provided, TriContinent can quickly customize the StatMatic bottle top dispenser for any OEM customer. The StatMatic bottle top dispenser is available to retail customers in any quantity and to OEM customers in quantities of 200 or more, with each packaged individually. OEM customers also have a selection of custom printing and labeling choices.

Specifications

  StatMatic StatMatic I StatMatic II
Volumes Cat# 401, 50 µL - 250 µL
Cat# 981, 0.5 mL - 2.5 mL		 Cat# 982, 0.8 mL - 2.4 mL Cat# 980, 0.8 mL, 1.6 mL, 2.0 mL or 2.4 mL w/Manifold
Precision (CV)
Accuracy
Per Well		 ≤ 1% (full stroke)
± 1%		 ≤ 5% (full stroke)
± 5%		 2.4 mL & 2 mL
≤ 1%
± 3%
300 mL & 250 mL		 1.6 mL
≤ 2%
± 4%
200 mL		 0.8 mL
≤ 3%
± 9%
100 mL
Dimensions (instrument only)
Length
Handle Diameter
Unit Weight
Shipping Weight		 6.75 in. [17.15 cm]
.795 in. [2.02 cm]
1.3 oz [36.85 gm]
6.3 oz [178 gm]		 7.25 in. [18.41 cm]
.795 in. [2.02 cm]
1.5 oz [42.52 gm]
6.5 oz [184 gm]		 8 in. [20.32 cm]
.795 in. [2.02 cm]
1.1 oz [31.18 gm]
9.8 oz [278 gm]
Fluid Contact Ceramic, Glass, Teflon®, Polypropylene, Platinum Iridium, Polyvinyl Chloride, Viton (Cat# 401 only) Polypropylene, Glass, Teflon®, Platinum Iridium, Ceramic, PVC Polypropylene, Glass, Teflon®, Platinum Iridium, Ceramic, PVC
Contents Included 20 mm, 24 mm, and 28 mm threaded adapters, 7 in. inlet tubing, 4.5 in. outlet delivery tubing, 25 in. remote delivery tubing, volume calibration rings and Operating Instructions. 3 dispense volume spacers, 20 mm, 24 mm, and 28 mm threaded adapters, flexible remote outlet tubing, long inlet tubing, 8-port manifold, manifold vertical holder and Operating Instructions. 500 mL plastic bottle with 28 mm cap assembly, bottle inlet tubing, luer fitting, 3 dispense volume spacers, 30 in. long Tygon® remote inlet tubing and Operating Instructions.
Accessories Cat# 790 125 cc HDPE bottle with tubing inlet and adapter
Cat# 822 8-port Manifold non sterile/disposable, polypropylene
Cat# 925 Fixed outlet tubing		 Cat# 790 125 cc HDPE bottle with tubing inlet and adapter
Cat# 822 8-port Manifold non sterile/disposable, polypropylene

Ordering Information

StatMatic



Catalog #
Description
401
50, 100, 200 and 250 μL
981
0.5, 0.8, 1.0, 2.0 and 2.5 mL

Accessories



Catalog #
Description
822
Manifolds, 8-port, non-sterile / disposable, 25 / box
925
Fixed outlet tubing, 5 / pack
For use with Cat# 0401 and 0981

Downloads

statmatic-datasheet

StatMatic Datasheet

pipettes-and-dispensers-warranty-information

Pipettes and Dispensers Warranty Information

Warranty

Returns

A Return Material Authorization (RMA) number must be issued by TriContinent before any products are returned. The RMA number must be referenced on the outside of the shipping box. TriContinent does not accept the return of products for credit/refund without prior approval. Unauthorized returns will be refused. TriContinent reserves the right to refuse a return on any product that has been used with infectious microbiological or radioactive substances or other materials that may be deemed hazardous to the employees of TriContinent.

Repair

TriContinent will repair or replace any product that is defective due to material or workmanship within a period of one year after shipment from TriContinent. Products returned for abuse and misuse will be repaired at the customers expense.

TriContinent reserves the right to charge a minimum repair charge for products returned within the warranty period for complaints that can not be verified by TriContinent.

Rework

Rework or modification to a previously purchased item will be at a negotiated price.

Exclusions

Some defects may be an exception to the one year warranty policy. Please contact your Sales Representative or Customer Service for details on your product.

The above warranty shall not apply for defective products resulting from:

  • Improper or inadequate maintenance by the customer
  • Unauthorized maintenance or service
  • Customer misuse
  • Operation outside of the environmental specifications for the product
  • Units returned without proper packaging

It is the responsibility of the customer to determine the suitability of an application and the material compatibility of the products.

Custom Options

Custom Options

Unit Color(s)

  • Tan Body and Knob
  • Gray Body and Teal Knob

Pad Printing Options - Handle

  • White or Black Ink Color

Hot Stamping Options - Knob

  • White or Black Ink Color

One time set up charge may apply

Minimum Oem Order/shipment Requirements

  • 200 unit minimum order
  • 25 unit minimum per shipment
