AccuPump2 OEM Syringe Pump

The next generation AccuPump2 OEM Syringe pump is designed to meet the broad needs of the automated liquidhandling market and is a seamless replacement for industry standard pumps using the Cavro® protocol. A variety of valves, piston seal designs and syringe barrel sizes provide selection and flexibility at a reasonable price and each AccuPump2 syringe pump is manufactured under stringent quality control standards resulting in industry recognized reliability and accuracy.

The TriContinent AccuPump2 provides a low-cost alternative to in-house customized syringe pump designs.

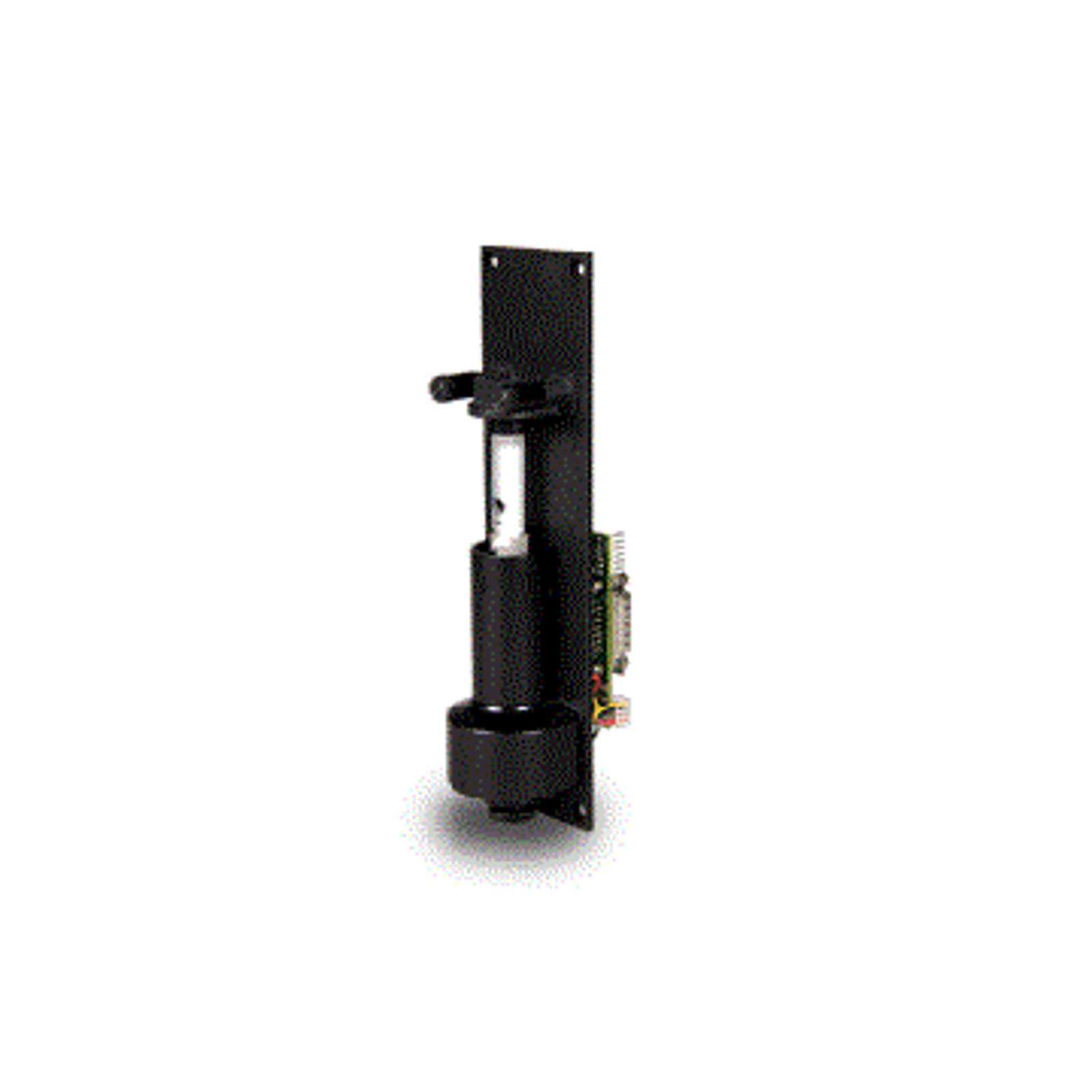

AccuPump2 Syringe Pump with No Valve

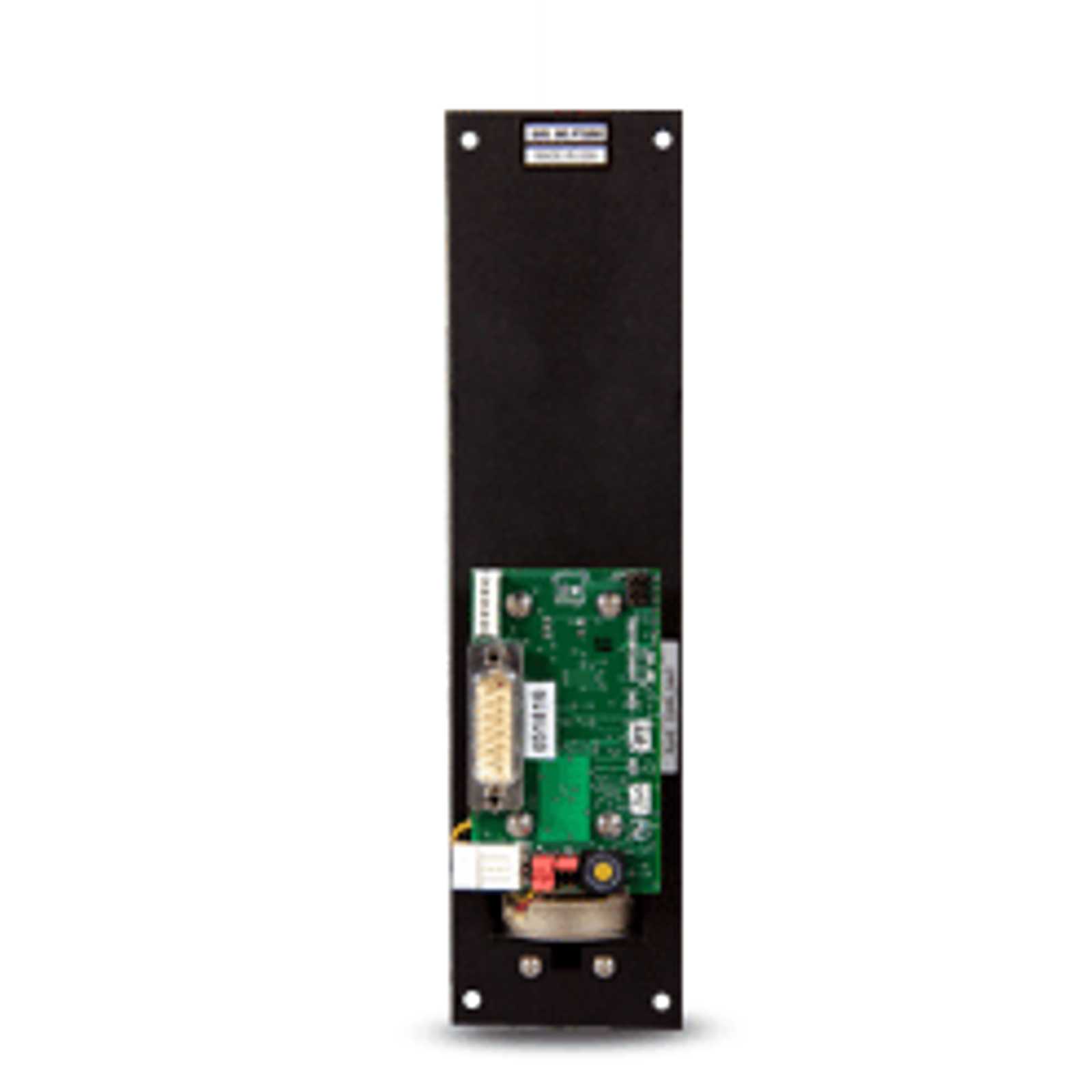

Created for use as a sample side of a two-syringe diluter or as a standalone air-displacement syringe pump, the valve-less AccuPump2 syringe pump provides accuracy, precision and long-life reliability. The AccuPump2 includes a TriContinent motor-driver PCBA which provides ready-to-use interfaces for single or multiple syringe pump use.

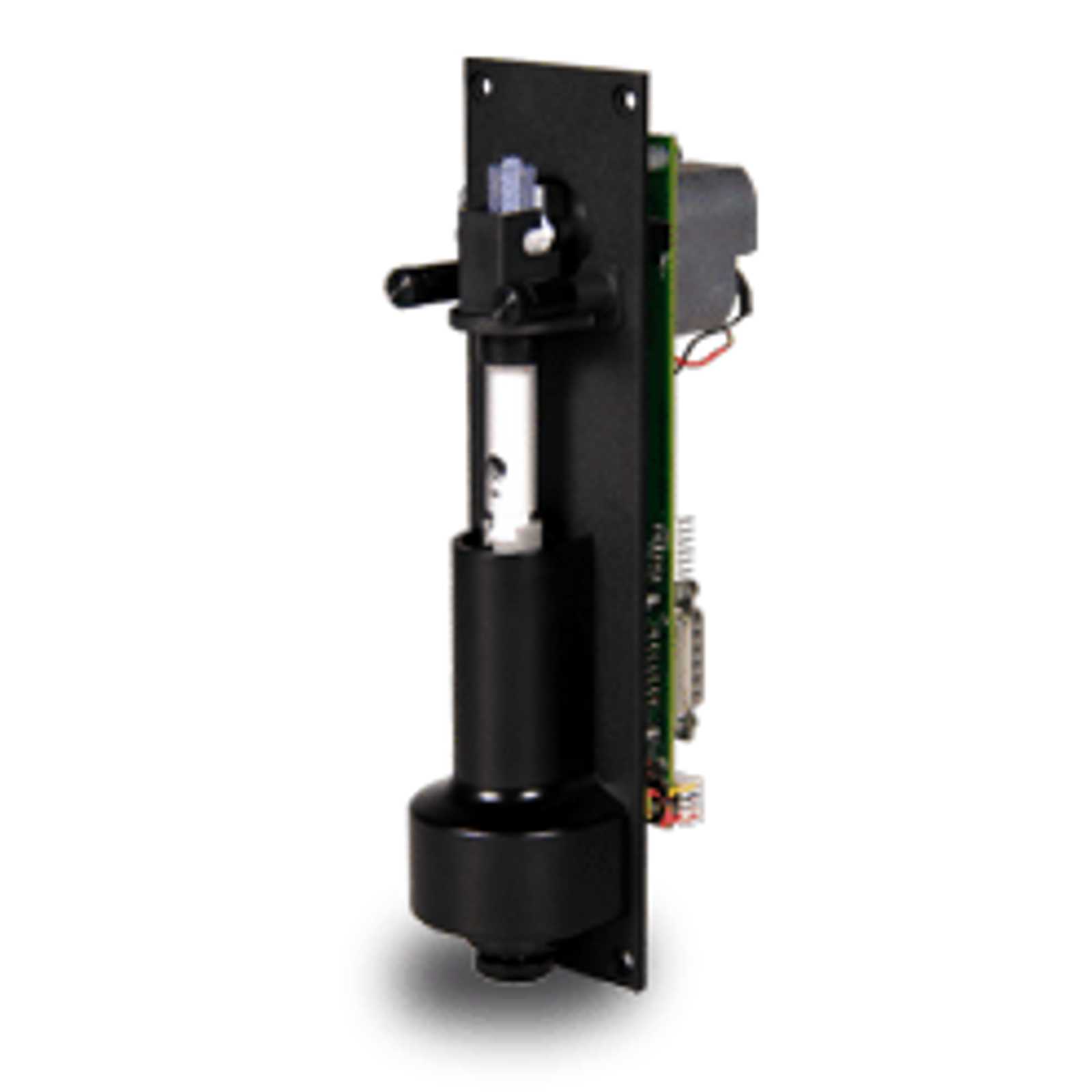

AccuPump2 Syringe Pump with Valve

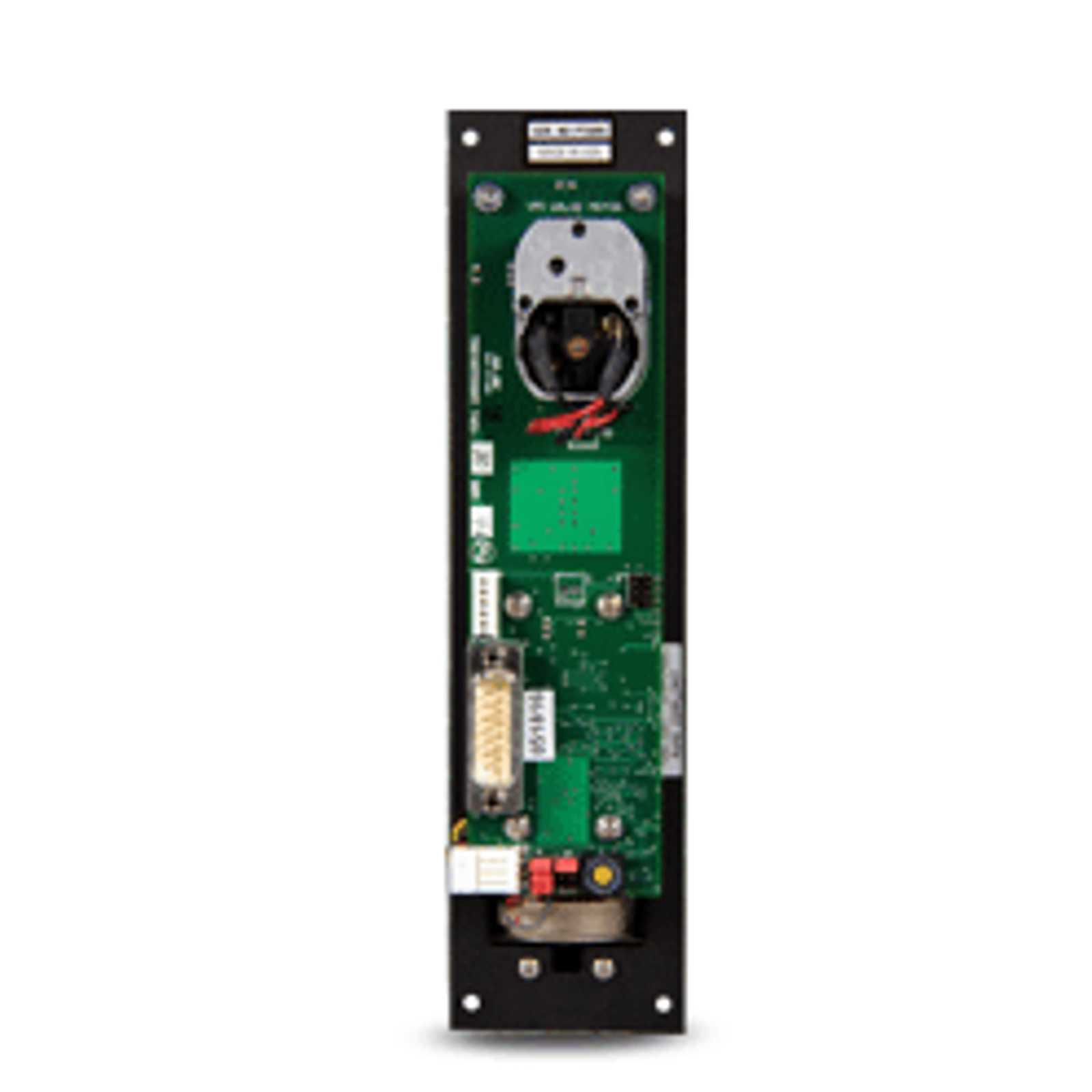

The AccuPump2 OEM syringe pump includes a highly reliable shear valve and is designed for use as the primary syringe pump in a two-syringe diluter system or as a single-syringe diluter/dispenser. It can be used as a standalone or in combination with other standard syringe pumps. AccuPump2 includes a TriContinent motor-driver PCBA which provides ready-to-use interfaces for single or multiple syringe pump use.

Valves

The two available three-way valves, small and large, have a polycarbonate body with a high-density polyethylene core and can last mote than 1,000,000 cycles in chemically compatible applications. A nylon valve body is also available.

See TriContinent's BasePump / AccuPump2 for a syringe pump similar to the AccuPump2 but without control electronics. The BasePump without electronics is best for those instrument manufacturers who have experience driving motors or are planning to develop their own control electronics.

Liquid-handling products and instruments certificates rohs

Drive Design	Direct drive stepper motor/leadscrew with 33 mm of travel (16.5 mm for small volumes).
	Manually movable for ”power off” syringe removal.
Syringe Speed	2 seconds to 60 seconds per stroke
Step Resolution
Short Stroke	1000 steps full stroke for 50 µL - 500 µL syringes
Long Stroke	2000 steps full stroke for 2 ml - 10 mL syringes
Electrical Interface	15-pin male DSUB
Power Rating	<500 mA (peak)
Power Requirements	24 VDC + 10%
Interface Type	RS232, RS485, CAN
Communication Rates	RS232/RS485 9600 or 38400 baud
	CAN - 100K, 125K, 500K, 1 M baud
Format (RS232/RS485)	Data Bits - 8, Parity - Note, Stop Bit - 1
	Half Duplex, Data Terminal and OEM protocols
Fluid Contact
Syringe Materials	Borosilicate Glass, PTFE, Polypropylene
Valve Materials	Nylon Body & HDPE plug or Polycarbonate body & HDPE plug
Operating Temperature	15°C to 40°C (59°F to 104°F)
Operating Humidity	20 to 95% RH at 40°C (104°F)
Media Temperature	15°C to 40°C (59°F to 104°F)

Configured Options

Valves	AccuPump2 for Diluent (with valve)
	AccuPump2 for Sample (without valve)
Valve Materials	Nylon Body & HDPE plug or Polycarbonate body & HDPE plug
Syringe Sizes	Diluent Syringe Sizes - 500 µL, 2 mL, 5 mL, 10 mL
	Single Port Sample Syringe Sizes - 250 µL, 500 µL, 2 mL, 5 mL, 10 mL
	Dual Port Sample Syringe Sizes - 50 µL, 250 µL

Functional Parameters

Imprecision (full stroke) at 50 µL to 250 µL	< 1.0% CV
Imprecision (full stroke) at 500 µL to 10 mL	< 0.5% CV
Inaccuracy	< 1.0 % syringe volume

Pumps

Catalog #	Description
10300	AccuPump2, Sample
10301	AccuPump2, Diluent

Syringes

Catalog #	Description
905	50 μL Dual Port Sample
904	250 μL Dual Port Sample
903	500 μL Diluent
902	2 mL Diluent
901	5 mL Diluent
900	10 mL Diluent
893	250 μL Single Port Sample
894	500 μL Single Port Sample
890	2 mL Single Port Sample
895	5 mL Single Port Sample
896	10 mL Single Port Sample

Plungers (5/Pack)

Catalog #	Description
779	50 μL for Dual Port Sample (2.740 L)
780	250 μL for Dual Port Sample (2.740 L)
783	250 μL Sample
781	500 μL Diluent or Sample
782	2 mL Diluent or Sample
784	10 mL Diluent or Sample
805	5 mL Diluent or Sample

Valves (10/Pack)

Catalog #	Description
785	Small Polycarbonate
983	Nylon

Syringe Holders

Catalog #	Description
889	for Dual Port Sample
891	for Diluent / Polycarbonate Valve
892	for Single Port Sample
984	for Diluent / Nylon Valve
