TriContinent Air-Z Legacy Series air displacement pumps are electronic air displacement pipette pumps designed to use liquid handling (XYZ) robotic systems. Thanks to TriContinent ADP pumps you can eliminate tubing and priming requirements usually associated with routine liquid handling tasks. At the same time, the precision and accuracy of the pump exceed that of any similarly sized handheld micropipette.
The compact and lightweight robotic pipette pump
The Air-Z Legacy’s simple mechanical interface makes it easy to integrate with liquid handling robotic systems. Developers can use their drivers for the Air-Z Legacy Series Pipette Pump or match the M-Series motion controller to provide a complete package.
Air-Z Legacy provides accuracy and precision for liquid handling applications
Syringe driven by the stepper motor will accurately and precisely handle fluid volumes from a few microliters to 5 milliliters. Using the TriContinent disposable tips, you can accurately and precisely perform sample transfers or reagent aliquoting without the risk of cross-contamination and carryover.
The flexibility of available configurations
TriContinent’s Air-Z Legacy Series air displacement pipette pumps are available version with or without the Proximity Sensor, as well as Instrument Ready configuration. Details can be found on the accessory tab on the TriTon (XYZ) liquid handling robot Page.
Fluid Contact Materials (in case of accidental fluid aspiration)

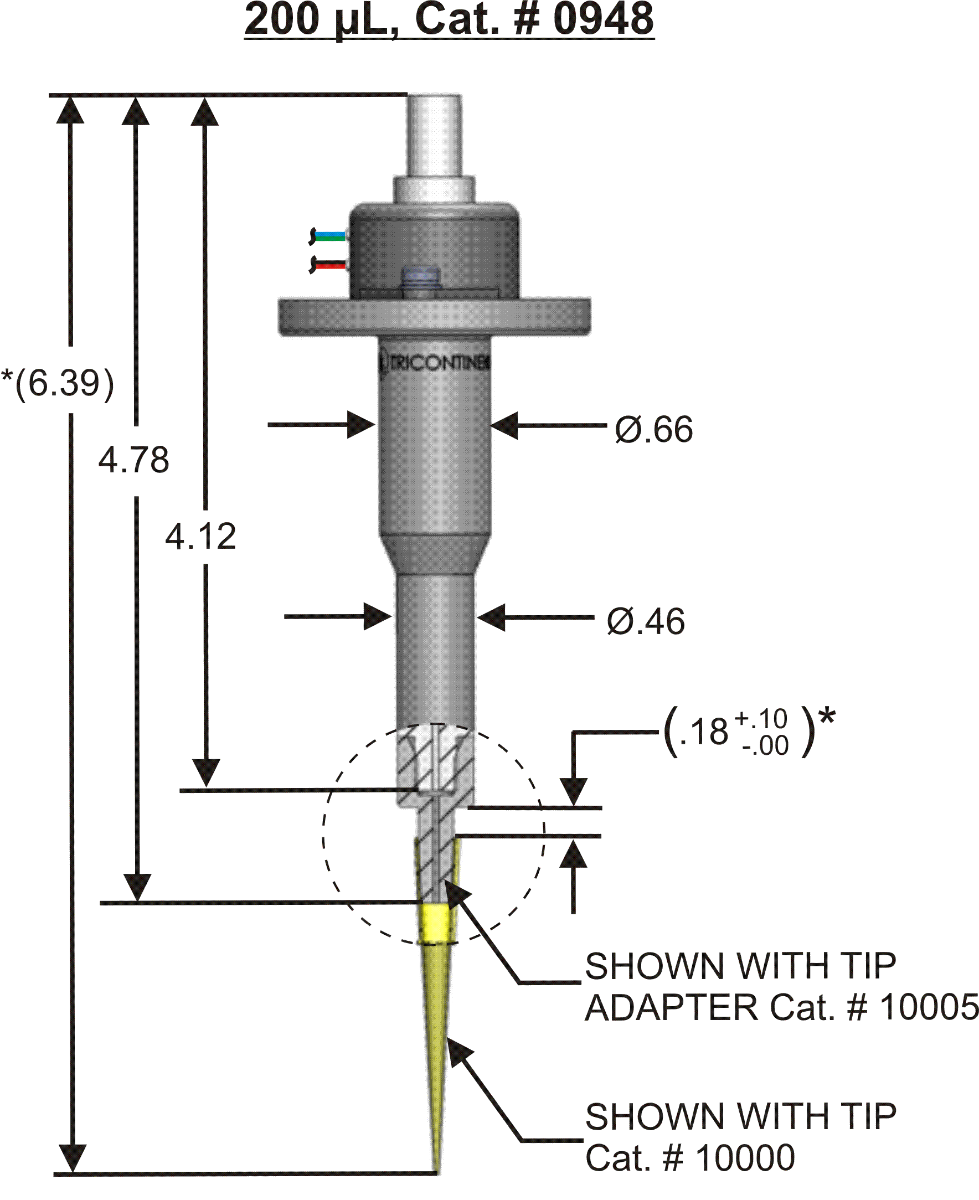

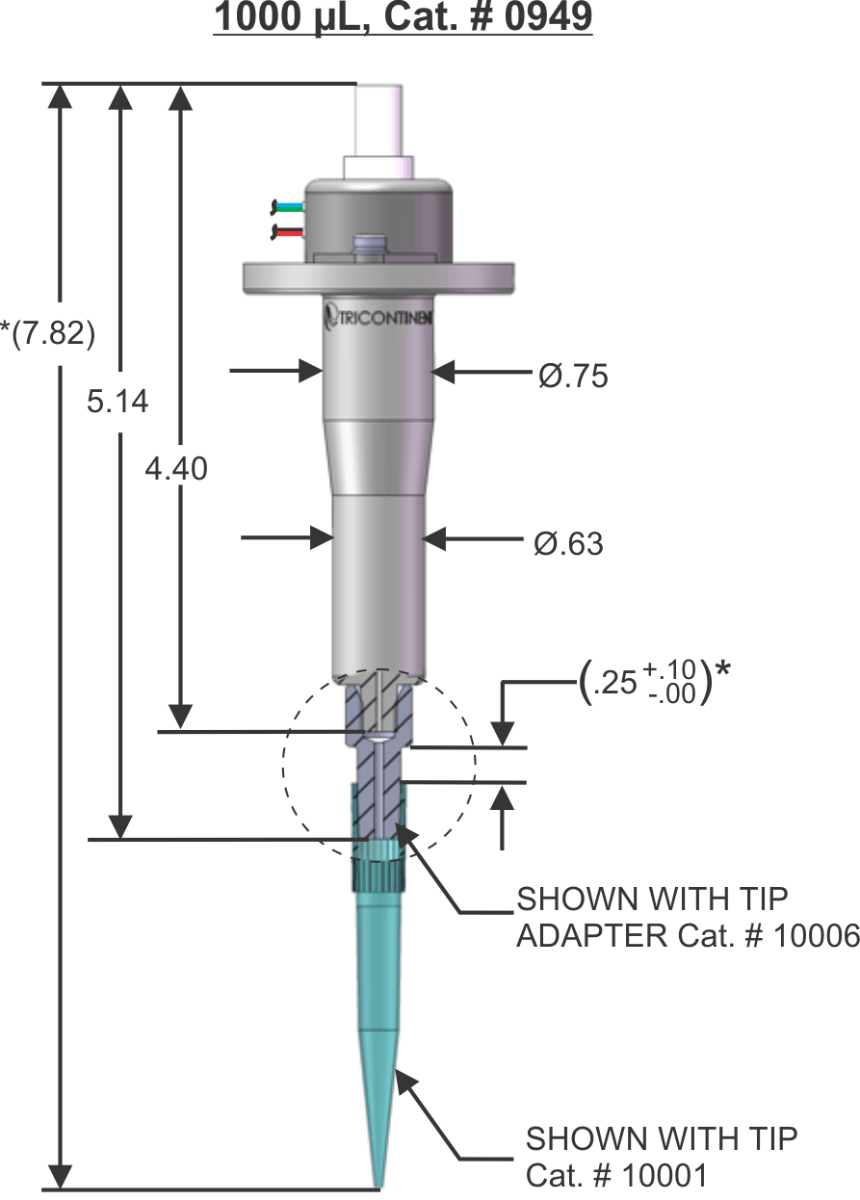

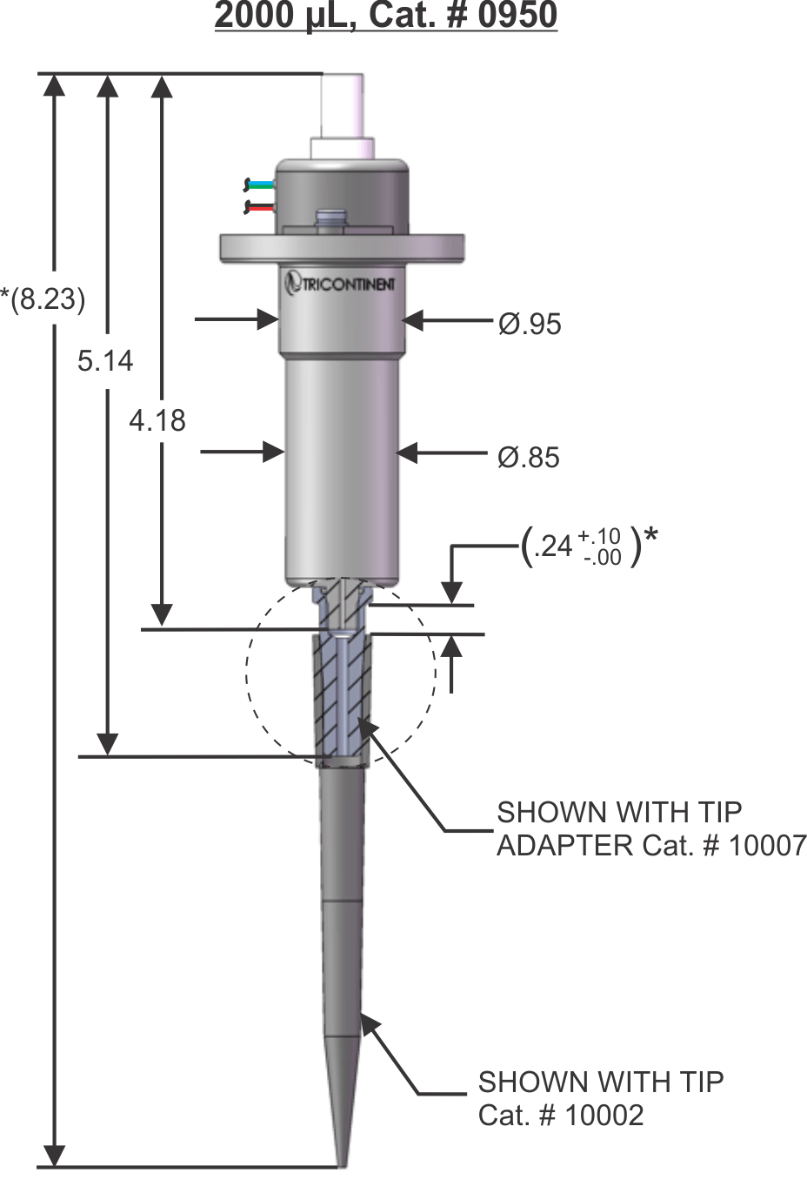

Note: Each tip is designed to seal within the reference gap dimensions shown. Customers should perform their own testing to determine optimum force/location for sealing and tip stripping.

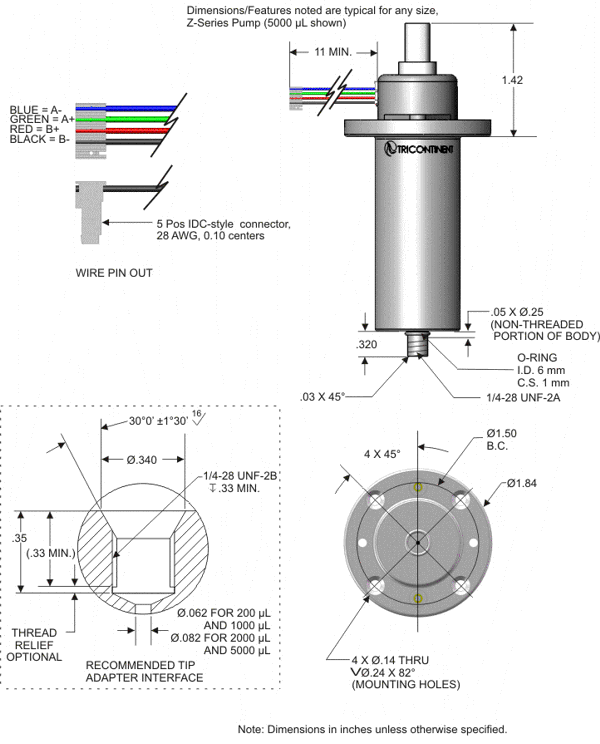

Dimensions/Features noted are typical for any size Z-Series pump (5000 µL shown)
TriContinent operates an ISO 13485 registered manufacturing facility that delivers the highest quality products. Z-Series Pumps are general laboratory components not subject to FDA regulatory approval. TriContinent uses the highest quality components with applicable safety markings to meet the needs of system designers. Z-Series Pumps do not carry independent CE markings as they are components designed for use within larger systems which are subject to independent testing and certification.
We stand behind the Z-Series Pumps with a 1-year warranty. During the warranty period, should a Z-Series Pump fail, call us with an explanation of malfunction and TriContinent will issue a Return Material Authorization (RMA) number for repair or replacement at our discretion, at no charge.
It is the responsibility of the customer to determine the suitability of an application and the material compatibility of our product with your application.
When returning a product for repair or replacement, please contact TriContinent Customer Service to receive an RMA number. When calling please be sure to have the following information available:
TriContinent will not accept the return of any product with out prior approval. TriContinent reserves the right to refuse a return of product that has been used with infectious microbiological or radioactive substances or any other materials that may be deemed hazardous.
The RMA number should be referenced on the outside of the shipping container when returning to TriContinent.
The above warranty shally not apply for defective products resulting from:
Note: For equipment damaged in shipping, please contact the shipper directly.
