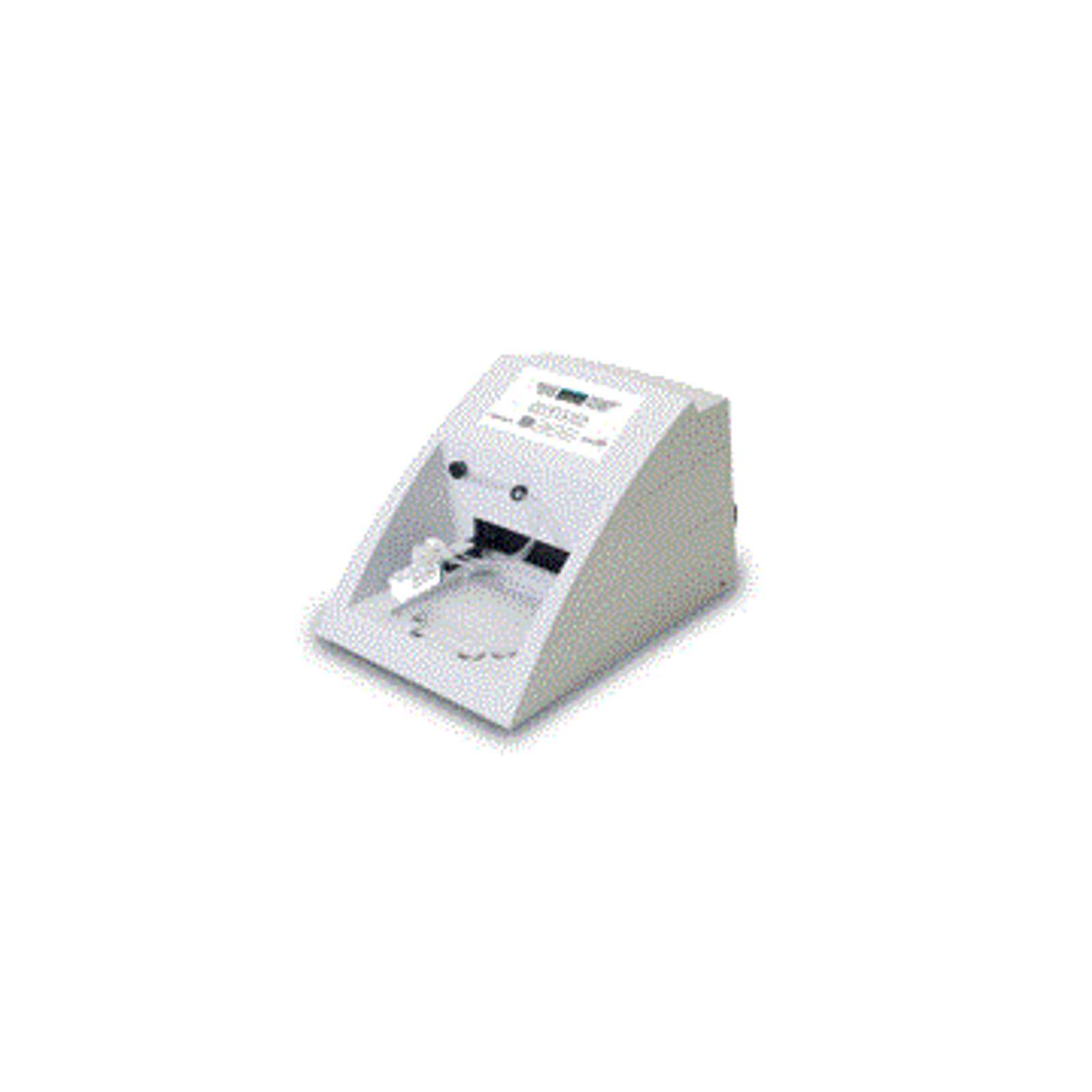

MultiWash III microplate washer

TriContinent’s MultiWash III microplate washer (microtiter plate washer) is designed and manufactured for dependable accuracy, flexibility, and convenient operation. TriContinent has designed and manufactured quality microplate washers since 1992.

8- or 12-port plate washer/dispenser
For use with multiple solutions for repetitive dispensing
50 pre-programmed, but user-definable wash programs
Manufactured under ISO 13485 quality system
Industry-leading two-year warranty

TriContinent MultiWash III Microplate Washer/Microtiter Plate Washer

TriContinent has designed and manufactured quality microplate washers since 1992.

Simplicity -- The MultiWash III microplate washer (microtiter plate washer) offers unique design features including, color-coded quick-connect fittings, programming of routines, and a single-button rinse, allowing for simplified lab operations.

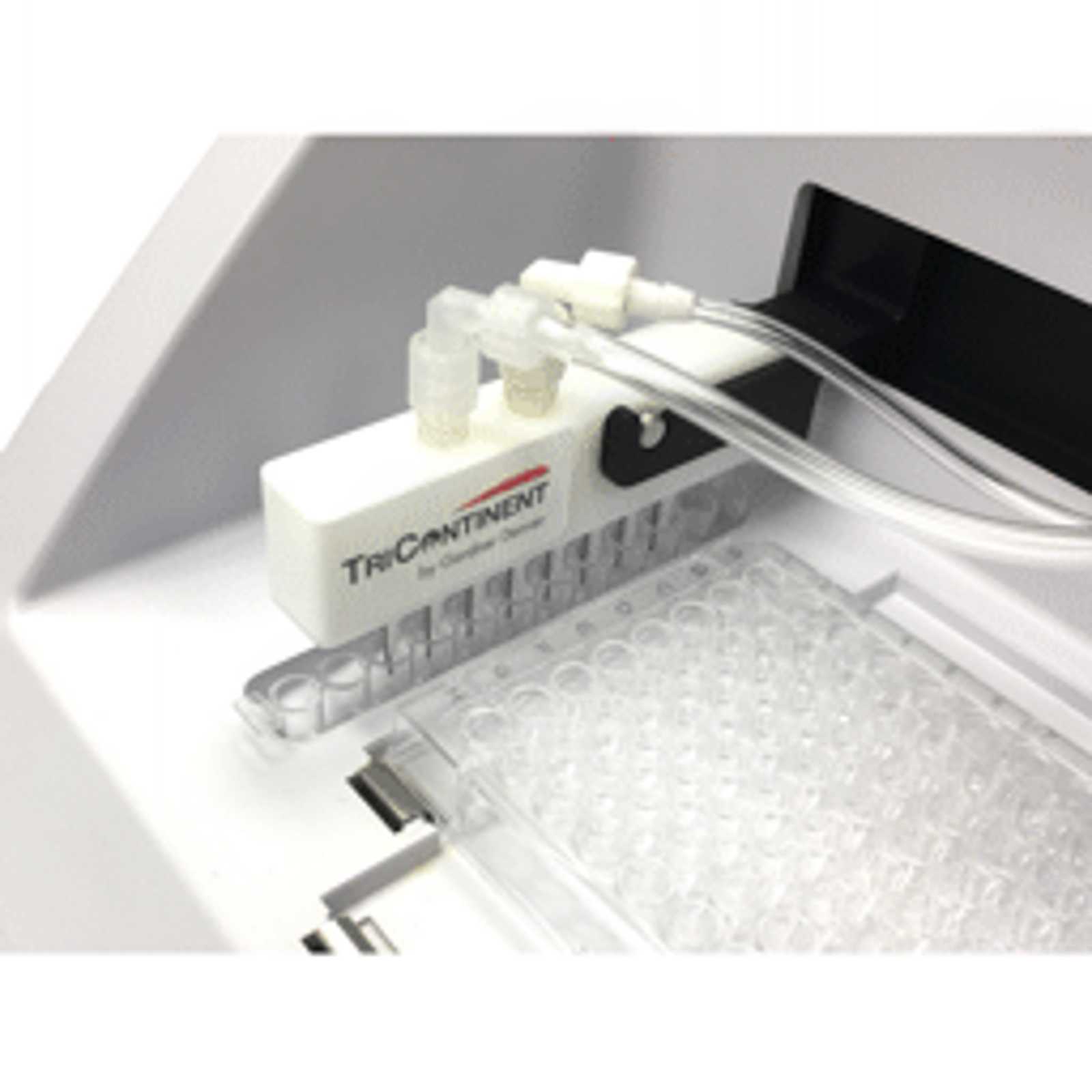

Flexibility -- The MultiWash III microplate washer (microtiter plate washer) offers 8 and 12-port manifolds, in both standard and coaxial configurations.
These manifold selections allow your lab to use one microplate washer for a variety of test routines.
Productivity -- The MultiWash III microplate washer (microtiter plate washer) has the capability to perform a 300 μL three-cycle wash on a full 96-well plate in less than two minutes,
and with our optional four-liter wash reservoir, your lab will increase its test throughput and reduce maintenance time.

With 50 programmable wash routines and extensive washing capabilities, the MultiWash III microplate washer is an ideal choice for labs that perform a variety of test routines including:

Elisa
Cell Washing
Cytoxicity tests
EIA, FIA and LIA
Agglutination tests

Maximum Dispense Volume	50 μL - 400 μL with standard manifold (recommended)
	50 μL - 1990 μL with 8-port coaxial manifold
	50 μL - 1650 μL wtih 12-port coaxial manifold
Weight	12 lbs or 4.5 kg (instrument only)
	21 lbs or 8.2 kg (domestic shipping weight)
	25 lbs or 9.9 kg (international shipping weight)
Dimensions (instrument only)
Height	9.5 in. (242 mm)
Width	11.5 in. (292 mm)
Depth	16.0 in. (406 mm)
Wash and Rinse Reservoir Volumes	Wash / Rinse / Waste - 2 liters each
Fluid Contact Materials	Glass

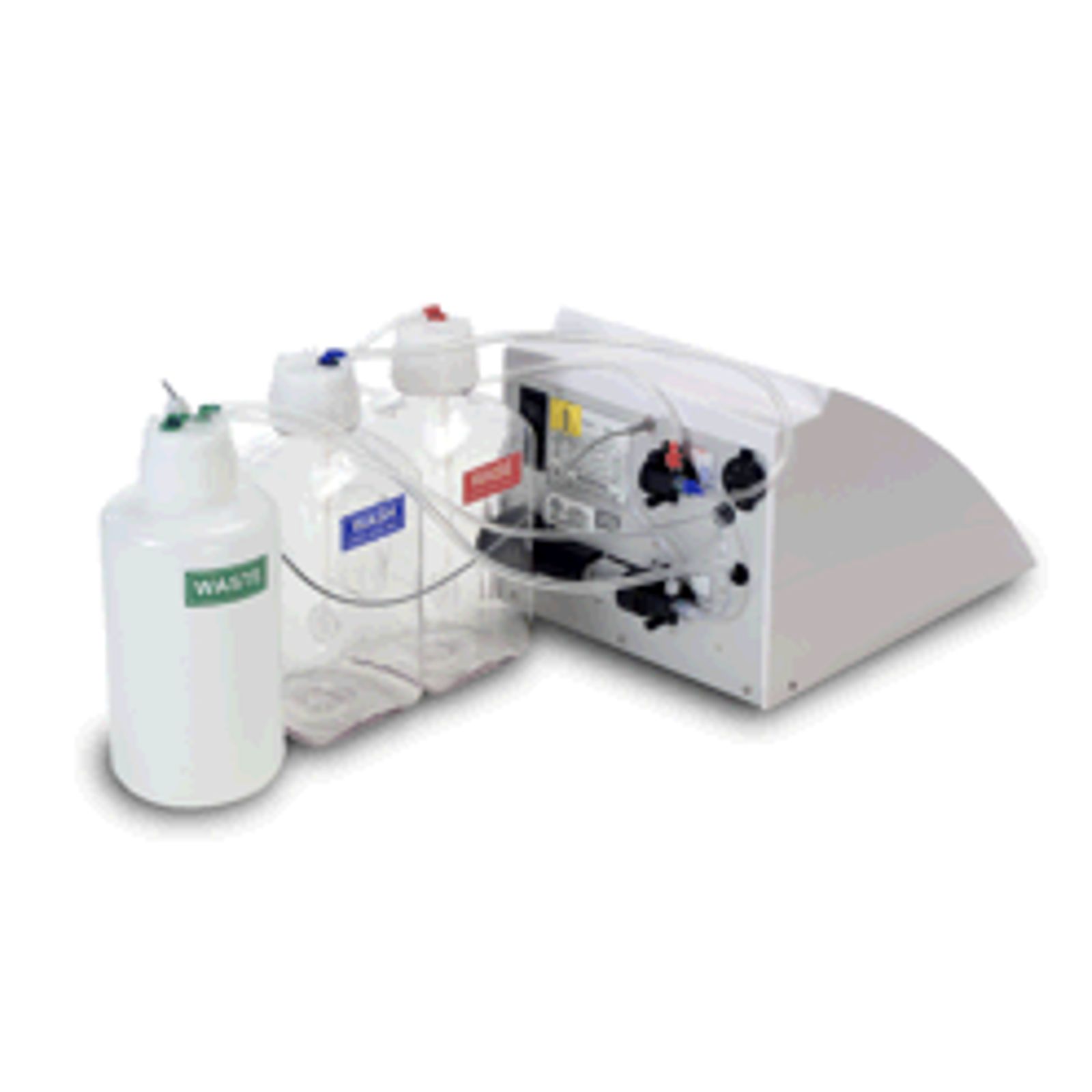

Contents	Reservoir Kit F (standard reservoir kit)
	2 Power Cords (1 each USA / Japan & European
	Spare Fuses
	Soakig Microstrip Wells
	Operations and Maintenance Manual

Full Plate processing speed time	180 seconds with 8-port manfold
Performance
Accuracy	+3% at 300 μL
Precision	< 3% at 300μL
Residual Volume	< 3 μL per well with standard manifold
Soak Time	0- 999 seconds
Number of Wash Cycles	10 wash cycles
Number of Programs	50 pre-programmed

Catalog #	Description
820	Without Manifold
0820-01	With 8-Port Standard Manifold
0820-02	With 12-Port Standard Manifold
0820-04	With 8-Port Coaxial Manifold
0820-05	With 12-Port Coaxial Manifold

Catalog #	Description
835	8-Port Standard
836	12-Port Standard
838	8-Port Coaxial
839	12-Port Coaxial

Catalog #	Description	Quantity
509	105 μM Filters, 10 / Pack	1
721	Clear Dispense Needles, 0.020” I.D. with Installation Tool	1
	16 / pack
933	Reservoir Kit F	1
	Includes: One each Waste Rinse and Wash bottle
	tubing, slip connectors and fittings.
934	Replacement Wash Reservoir Cap assembly with slip connectors for use with Kits E and F	1
935	Replacement Rinse Reservoir Cap assembly with slip connectors for use with Kits E and F	1
936	Replacement Waste Reservoir bottle and cap with slip connectors for use with Reservoir Kits E and F	1
943	Maintenance Kit and Syringe Assembly (Cat#'s 0944 and 0945)	1
	No tubing included.
944	Maintenance Kit w/out Syringe Assembly.	1
	Includes: Four each inlet filters, thumbscrews and microstrip wells. Two each fuses, valves, valve convers, cleaning needle assemblies and needle installation tools. 16 needle shroud assemblies.
945	Replacement Syringe Assembly	1
	Includes: One each valve cover and syringe set and two thumbscrews.
946	Replacement Tubing Kit	1

MutliWash III Datasheet

MultiWash Manual

Washers Warranty Information

MultiWash Warranty Information

TriContinent operates an ISO 13485 registered manufacturing facility that delivers the highest quality products.

We stand behind the MultiWash with a 2-year warranty. During the warranty period, should a MultiWash fail, call us with an explanation of malfunction and TriContinent will issue a Return Material Authorization (RMA) number for repair or replacement at our discretion. Do not attempt to repair the instrument, removing the case from the instrument will void the warranty.

It is the responsibility of the customer to determine the suitability of an application and the material compatibility of our product with your application.

When returning a product for repair or replacement, please contact TriContinent Customer Service to receive and RMA number. When calling please be sure to have the following information available:

Catalog Number
Serial Number
Explanation of Malfunction

TriContinent will not accept the return of any product with out prior approval. TriContinent reserves the right to refuse a return of product that has been used with infectious microbiological or radioactive substances or any other materials that may be deemed hazardous. A minimum repair charge may occur for products returned for complaints that cannot be verified by TriContinent.

The RMA number should be referenced on the outside of the shipping container when returning to TriContinent.

Warranty Exclusions

The above warranty shall not apply for defective products resulting from:

Improper or Inadequate maintenance by the customer
Unauthorized maintenance or service
Customer misuse
Operation outside of the environmental spefications for the product
Instruments returned without proper packaging

There is no warranty expressed for the following components:

Valves
Syringes
Plungers/Seals

Note: For equipment damaged in shipping, please contact the shipper directly.

OEM requirements	25 unit minimum order
	5 unit minimum per shipment
Customization is available on below options. A one-time setup charge may apply for each customized area selected.

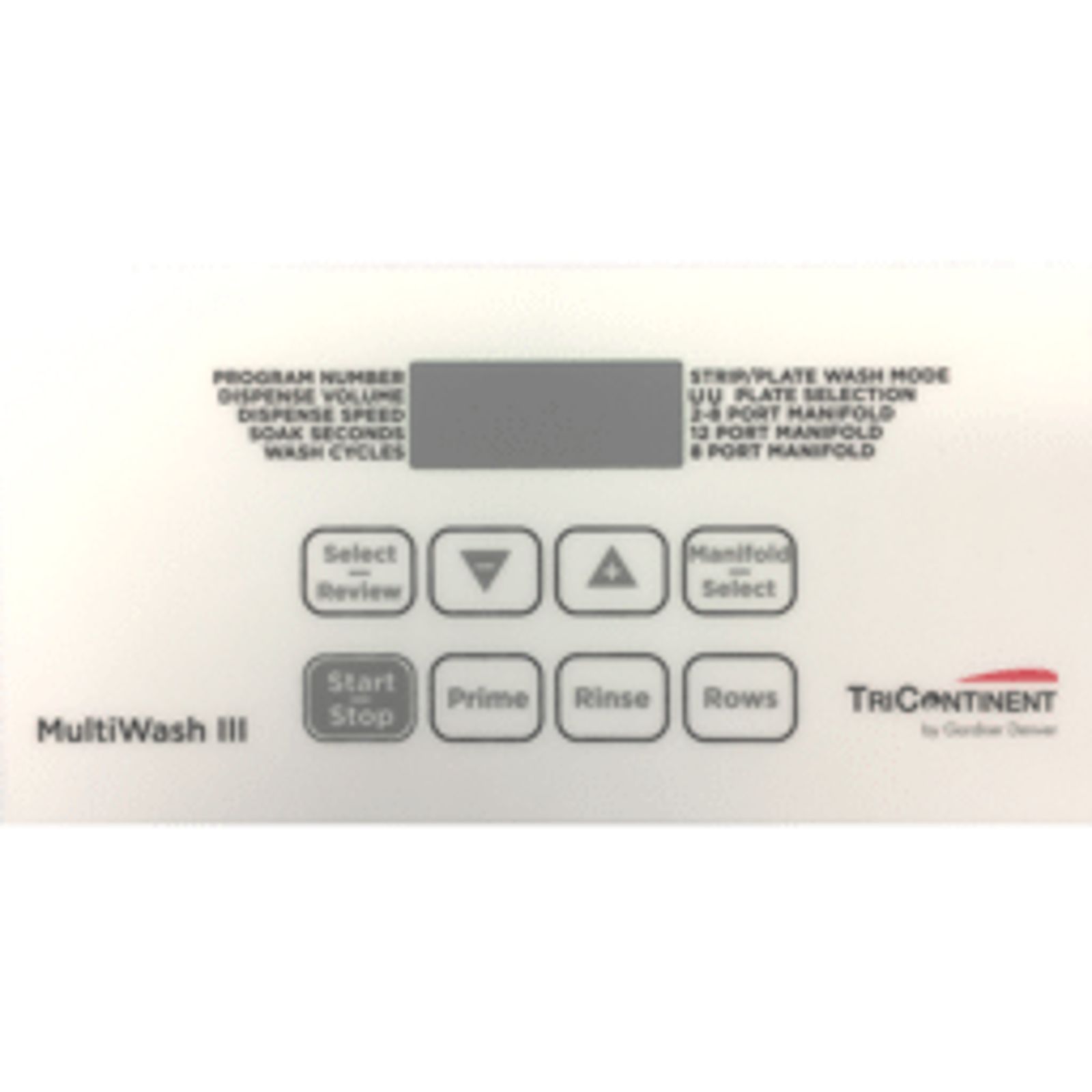

Panel Overlay	Retail
	OEM/Generic
	Custom
Manifold	8-port Standard or Coaxial
	12-port Standard or Coaxial
Manifold Label	Retail
	OEM/Generic
	Custom
Power Cord	US/Japan
	European
Operation Manual
Quick Start Guide
Custom Software
Packaging Labels

Asia Pacific

Global
