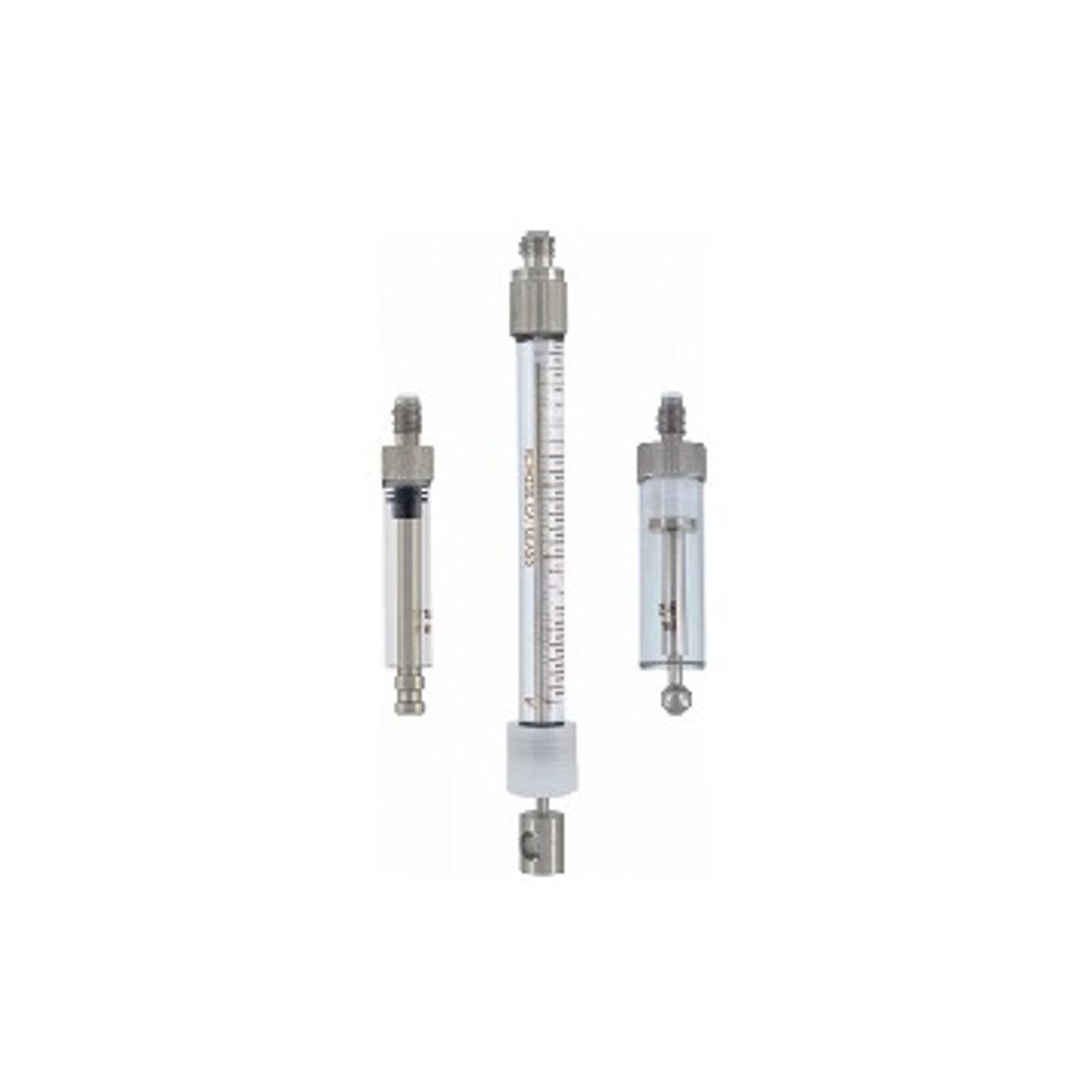

Prime Syringes

TriContinent Prime Series Syringes can be summarized in two words: quality and customization. For over four decades, we have been producing syringes of the finest quality, specially designed for use with syringe pumps. Each of our Prime Series Syringes is made from premium borosilicate glass, and has precision bore diameters of +/- 0.0002". Our syringe seal materials include high-quality PTFE, UHMWPE, or custom UHMWPE blends. Whether your reagents are simple aqueous solutions, or extremely crystalline and abrasive, we offer the ideal seal solution to suit your application.

Prime Replacement Syringes, 3 cm

Our Prime Replacement Syringes are compatible with TriContinent C-Series syringe pumps, as well as other industry standard 3 cm stroke syringe pumps.

Features & Benefits:

Designed for volumes of 50 µL to 25 mL
Luer or ¼-28 threaded end caps
Broad variety of syringe interfaces
Seals available in PTFE, UHMWPE, or custom UHMWPE blends
Customized designs and materials to suit application requirements

AccuPump2 and BasePump Syringes

AccuPump 2 and BasePump syringes are designed specifically for these OEM pumps to ensure long life and optimum performance.

Liquid-handling products and instruments certificates rohs

MODEL	3cm Syringes	Syringes
	(fits TriContinent C-Series Pumps Tecan's Cavro XP3000 and XCalibur)	(fits TriContinent BasePump models)
AVAILABLE VOLUMES	50 μL, 100 μL, 250 μL, 500 μL, 1 mL, 2.5 mL, 5 mL, 12.5 mL* (additional volumes upon request)	50 μL, 250 μL, 500 μL, 2 mL, 5 mL, 10 mL (additional volumes upon request)
FITTING INTERFACE	1/4 - 28	Diluent Syringe - Luer Fittings
		Single Port Syringe - 1/4 - 28 Female Port
		Dual Port Syringe - Male Luer Fittings
STROKE LENGTH	3 cm
FLUID CONTACT MATERIALS	UHMWPE Seal, Borosilicate Glass	PTFE seal, Borosilicate Glass, Polypropylene
	PTFE seal, Borosilicate Glass

* Compatible only with the TriContinent C3000 Model # 8657-15 and C24000 Model # 8657-11.

Please contact your TriContinent Sales Representative for current pricing.

3cm Syringes (fits TriContinent C-Series Pumps, Tecan's Cavro™ XP3000 and XCalibur)

Catalog #	Description
10470	50 μL UHMWPE
10471	100 μL UHMWPE
10472	250 μL UHMWPE
10473	500 μL UHMWPE
10474	1 mL UHMWPE
10475	2.5 mL UHMWPE
10476	5 mL UHMWPE
10480	50 μL PTFE
10481	100 μL PTFE
10482	250 μL PTFE
10483	500 μL PTFE
10484	1 mL PTFE
10485	2.5 mL PTFE
10486	5 mL PTFE
10488*	12.5 mL PTFE

* Compatible only with the TriContinent C3000 Model # 8657-15 and C24000 Model # 8657-11

MC6000 Syringes*

Catalog #	Description
10480	50 μL PTFE
10481	100 μL PTFE
10482	250 μL PTFE
10483	500 μL PTFE
10484	1 mL PTFE
10485	2.5 mL PTFE
10486	5 mL PTFE

* Long-life UHMWPE seals available upon request

Syringes (fits TriContinent Basepump Models)

Catalog #	Description
905	50 μL PTFE Dual Port Sample
904	250 μL PTFE Dual Port Sample
903	500 μL PTFE Diluent
902	2 mL PTFE Diluent
901	5 mL PTFE Diluent
900	10 mL PTFE Diluent
893	250 μL PTFE Single Port Sample
894	500 μL PTFE Single Port Sample
890	2 mL PTFE Single Port Sample
895	5 mL PTFE Single Port Sample
896	10 mL PTFE Single Port Sample

Asia Pacific

Global

Description

Prime Replacement Syringes, 3 cm

AccuPump2 and BasePump Syringes

Specifications

Ordering Information

Please contact your TriContinent Sales Representative for current pricing.

3cm Syringes (fits TriContinent C-Series Pumps, Tecan's Cavro™ XP3000 and XCalibur)

MC6000 Syringes*

Syringes (fits TriContinent Basepump Models)

Downloads

Prime Series Syringes Datasheet
