Syringe Pumps | C-Series Syringe Pumps

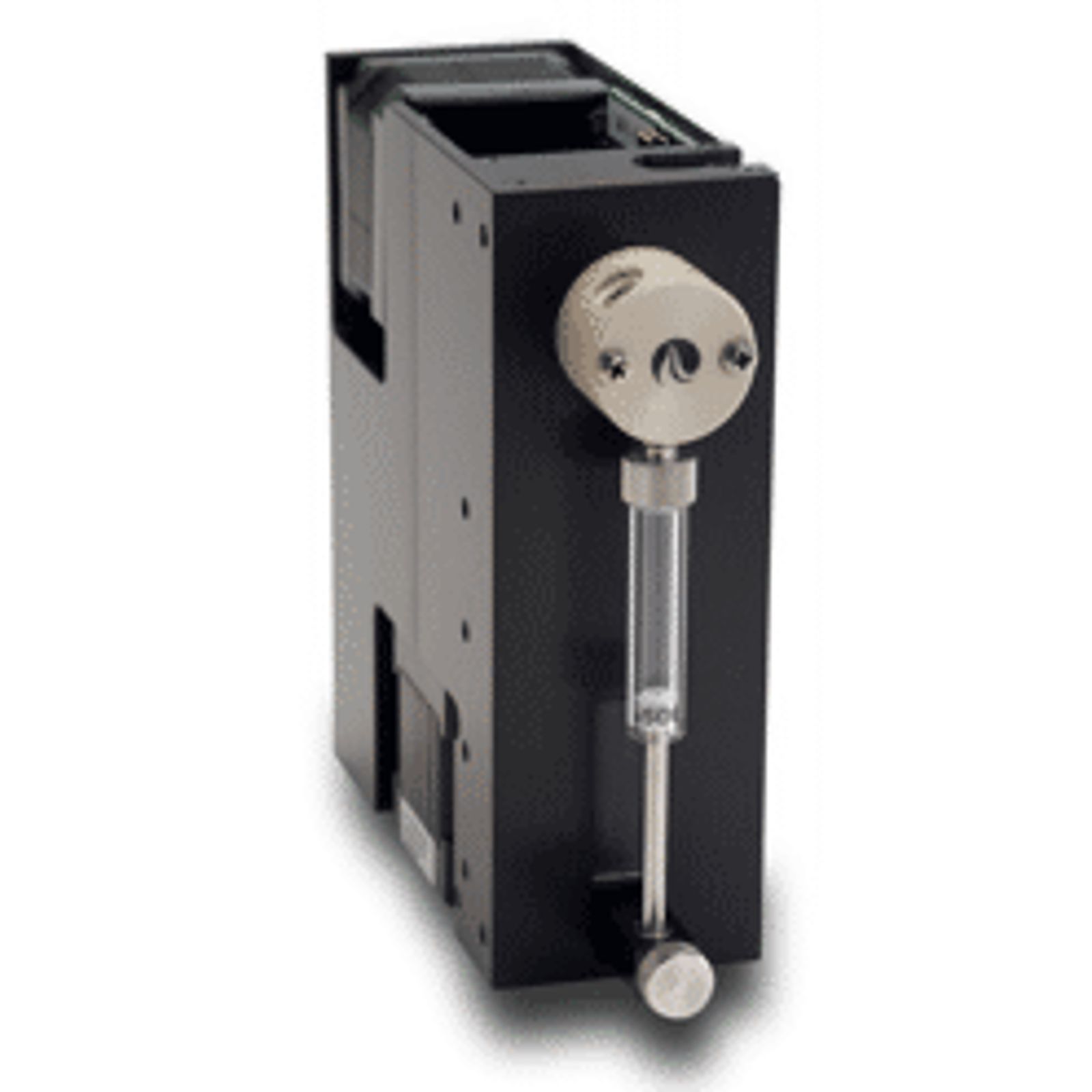

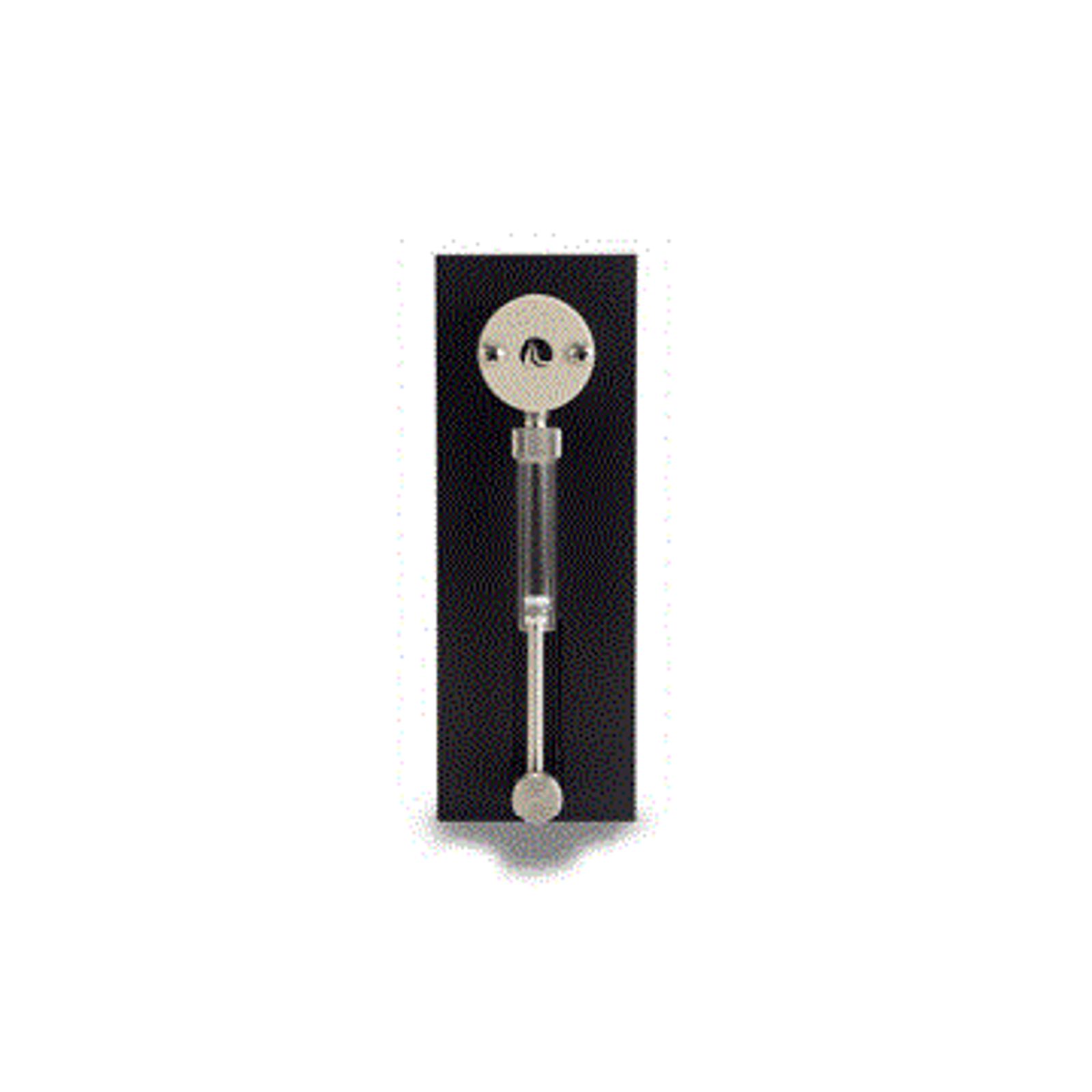

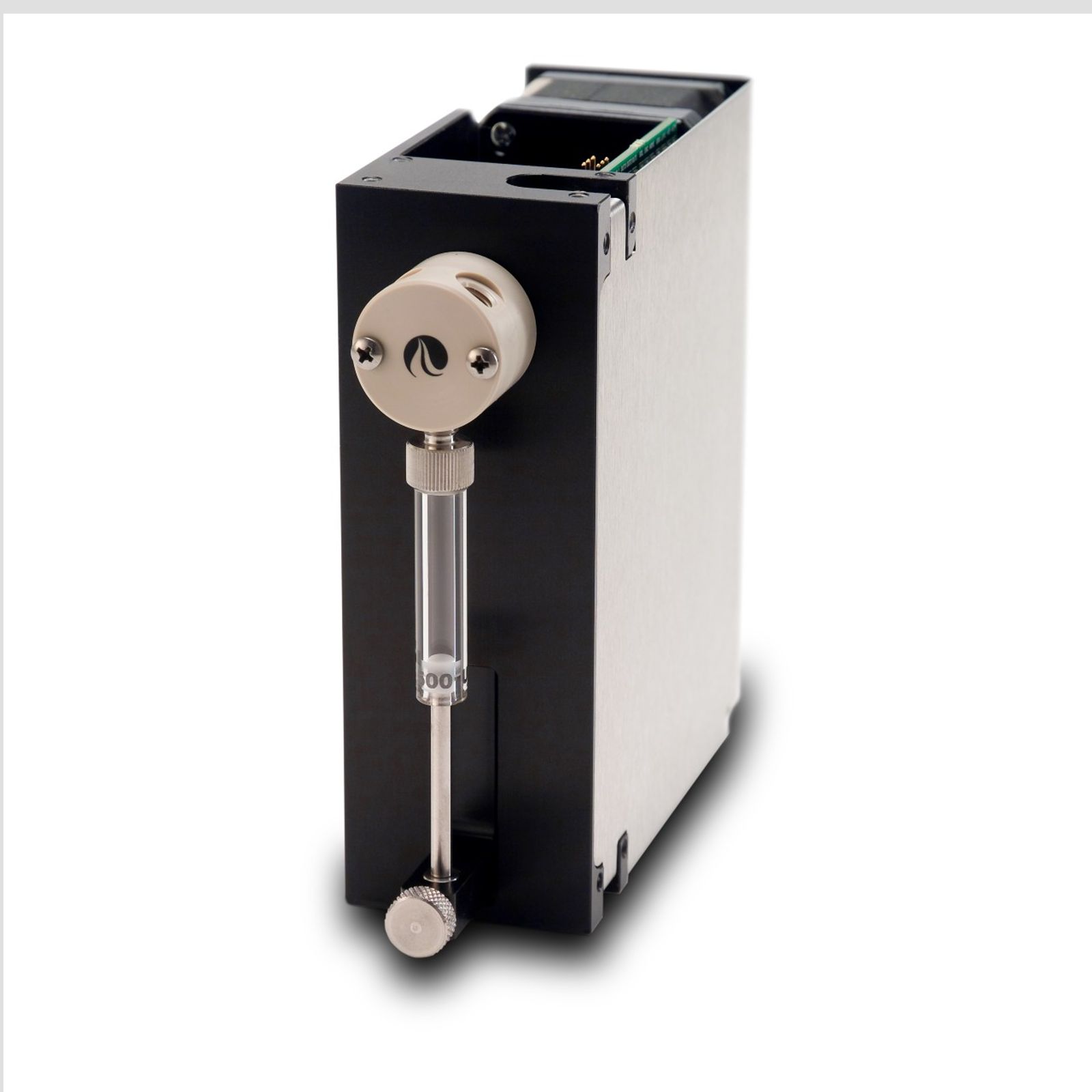

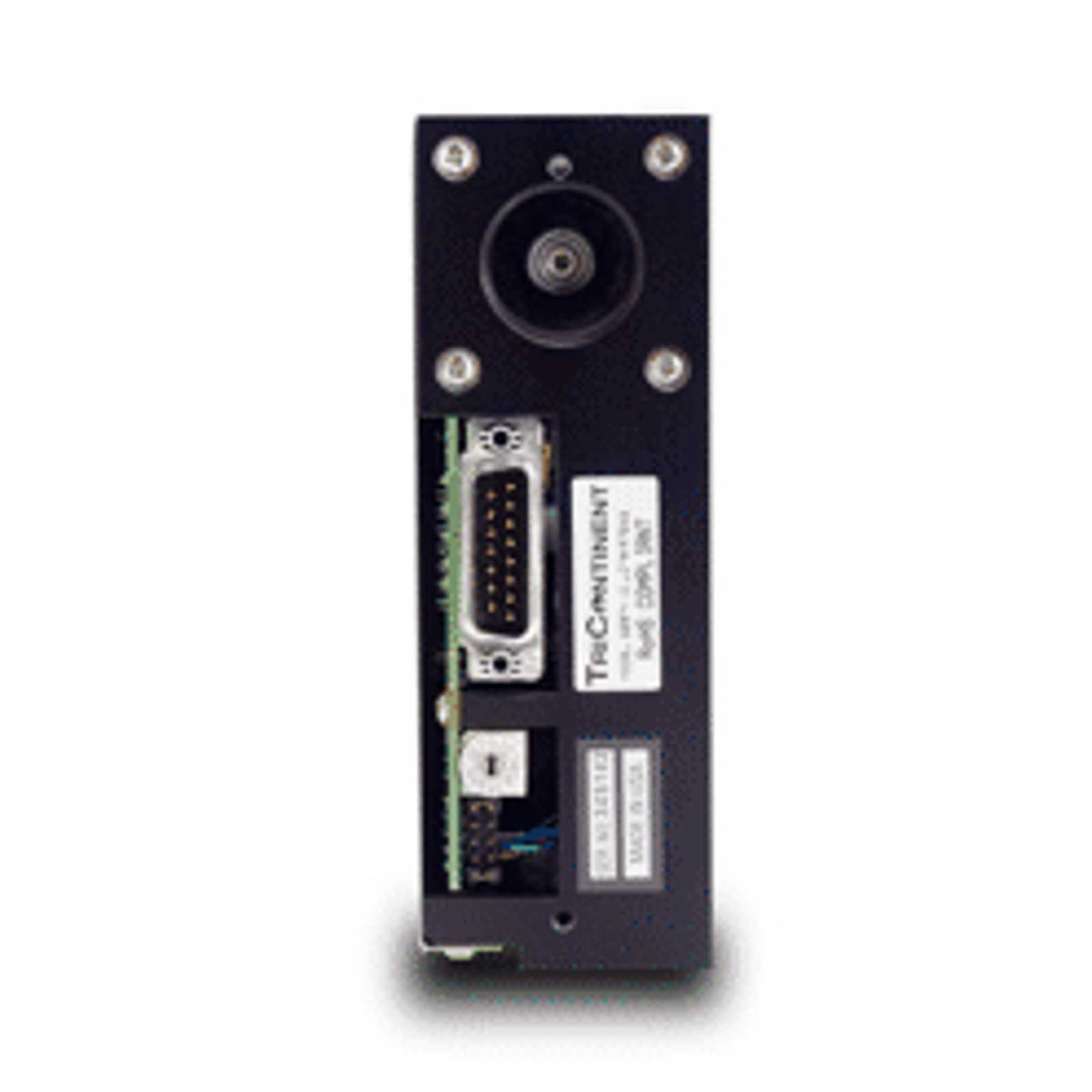

Syringe pump module designed for liquid handling in automated instrumentation
Extremely high dispense precision and accuracy
3cm stroke for syringe sizes from 50 μL to 12.5 mL
Designed for low flow, low pulsation applications
Different valve options (3, 4 or 6 way) to allow multi-source aspiration and dispensing (e.g. reagents)
Easy to integrate
Long life and highly reliable
Compact design
Flexible configurations and customizable

Superior Liquid Handling Performance

The TriContinent C-Series Syringe Pump provides extremely high accuracy and precision for low volume dispensing, diluting and pipetting. It is also an ideal solution for applications that require low flow rates and low pulsation as it achieves a resolution of up to 192,000 micro steps/full stroke. Thanks to their compact design and flexible configurations our pumps are used for liquid handling tasks across a wide range of applications such as Diagnostics, Next-Gen Sequencing, Flow-Cytometry, Sample Preparation in general and many more.

Flexible Configuration

TriContinent offers syringe sizes between 50 μL to 12.5 mL and different valve options with 3,4 and 6 way for transferring liquids from and to multiple sources.

In case your instrument requires a customized solution we are also able to accommodate customer specific designs and configurations. Please download our case studies to read more about our cooperation with word-leading OEM customers.

Long-Life

The C-Series syringe pumps are highly robust and reliable as they utilize a proprietary high-efficiency, direct-drive design that does not use belts that can stretch or wear out. The robust drive mechanism has been life-tested and lasts several million cycles with no maintenance required throughout its life.

In addition, our rotary sheer valves showed in lifetime tests up to 24 times the life of competing valves.

Easy To Integrate

Our pumps are programmable and easy to integrate as they use the Cavro® protocol and hence can be used as a seamless replacement for industry standard pumps. They also utilize standard communication protocols and mounting configurations used by other compact syringe pump designs, thereby eliminating expensive and time-consuming re-development.

Competitive Advantages

A seamless replacement for industry standard pumps using the Cavro® protocol
High Resolution options available up to 192,000 steps/full-stroke
Proprietary high-efficiency and maintenance-free drive system
Direct-drive design (no belts to stretch or break)
Long-life rotary shear valves (up to 24 times the life of competing valves)
Syringe sizes from 50 μL to 12.5 mL

Liquid-handling products and instruments certificates rohs

See Frequently Asked Questions

	C3000	C3000MP	C24000	C24000MP
Stroke Speed	1.2 seconds to 100 minutes per stroke (800 minutes in microstep mode).	1.2 seconds to 100 minutes per stroke (800 minutes in microstep mode).	4.2 seconds to 800 minutes per stroke (3200 minutes in microstep mode).	4.2 seconds to 800 minutes per stroke (3200 minutes in microstep mode).
Valve Options	120° 3-port, 90° 4-port, T-valve, 90° 3-way Distribution Rotary Plug PTFE or UHMWPE Body materials PEEK or PCTFE	6-way distribution valve PCTFE/UHMWPE PEEK/UHMWPE	120° 3-port, 90° 4-port, T-valve, 90° 3-way Distribution Rotary Plug PTFE or UHMWPE Body materials PEEK or PCTFE	6-way distribution valve PCTFE/UHMWPE PEEK/UHMWPE
Step Resolution	Standard mode 3,000 steps, Hi-Res mode 24,000 steps	Standard mode 3,000 steps, Hi-Res mode 24,000 steps	Standard mode 24,000 steps, Hi-Res mode 192,000 steps	Standard mode 24,000 steps, Hi-Res mode 192,000 steps
Drive Design	Direct drive stepper motor/leadscrew with 30 mm of travel.Manually moveable for ”power off” syringe removal.	Direct drive stepper motor/leadscrew with 30 mm of travel.Manually moveable for ”power off” syringe removal.	Direct drive stepper motor/leadscrew with 30 mm of travel.	Direct drive stepper motor/leadscrew with 30 mm of travel.

Fluid Contact Syringe Material	Borosilicate Glass and UHMWPE or PTFE (seal) - Pressures to 80 PSI
Fluid Contact Valve Material	PCTFE or PEEK (housing) and PTFE or UHMWPE (plug) - Pressures to 100 PSI
Accessories Syringe Sizes	50 μL, 100 μL, 250 μL, 500 μL, 1 mL, 2.5 mL, 5 mL, 12.5 mL
Interface Type	RS232, RS485 or CAN
Communication Rates	RS232/RS485 9600 or 38400 CAN - 100K, 125K, 250K, 500K, 1M bps
Format (RS232/RS485)	Data Bits - 8, Parity - None, Stop Bit - 1 Half Duplex, Data Terminal and OEM protocols
Operating Temperature and Humidity	15°C to 40°C (59°F to 104°F) and 20% to 95% RH at 40°C (104°F)
Non-Operating Temperature and Humidity	-20°C to 65°C (-4°F to 149°F) and 30% to 85% RH, non-condensing
Media Temperature	15°C to 40°C (59°F to 104°F)
Imprecision (full stroke) at 50 μL to 100 μL	< 0.1% CV
Imprecision (full stroke) at 250 μL to 12.5 mL	< 0.05% CV
Inaccuracy (full stroke)	< 1% syringe volume
Power Requirement	24 VDC +10%
Power Rating	<1.5 Amp (peak)

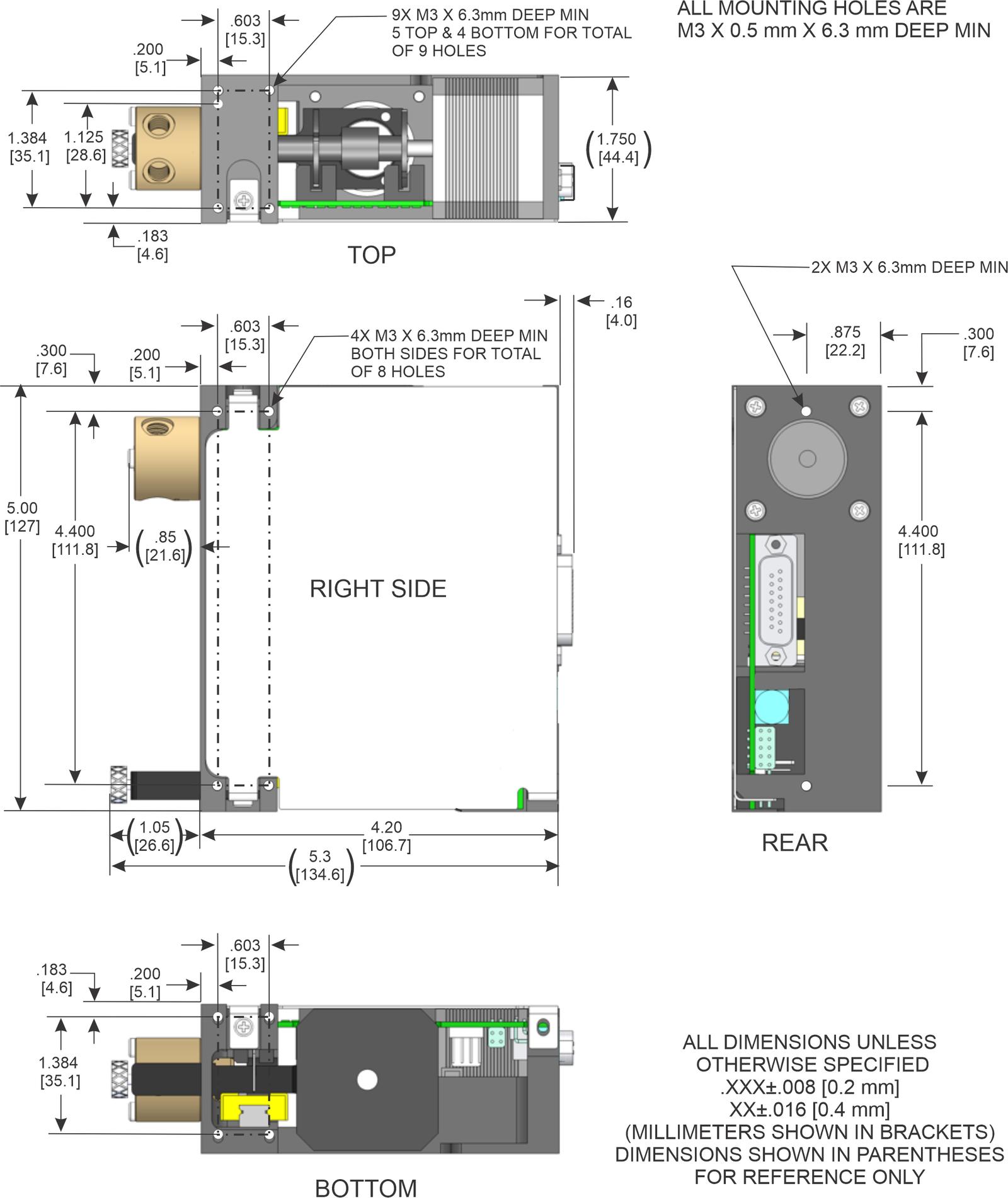

C-SERIES PUMP INTERFACE DETAILS

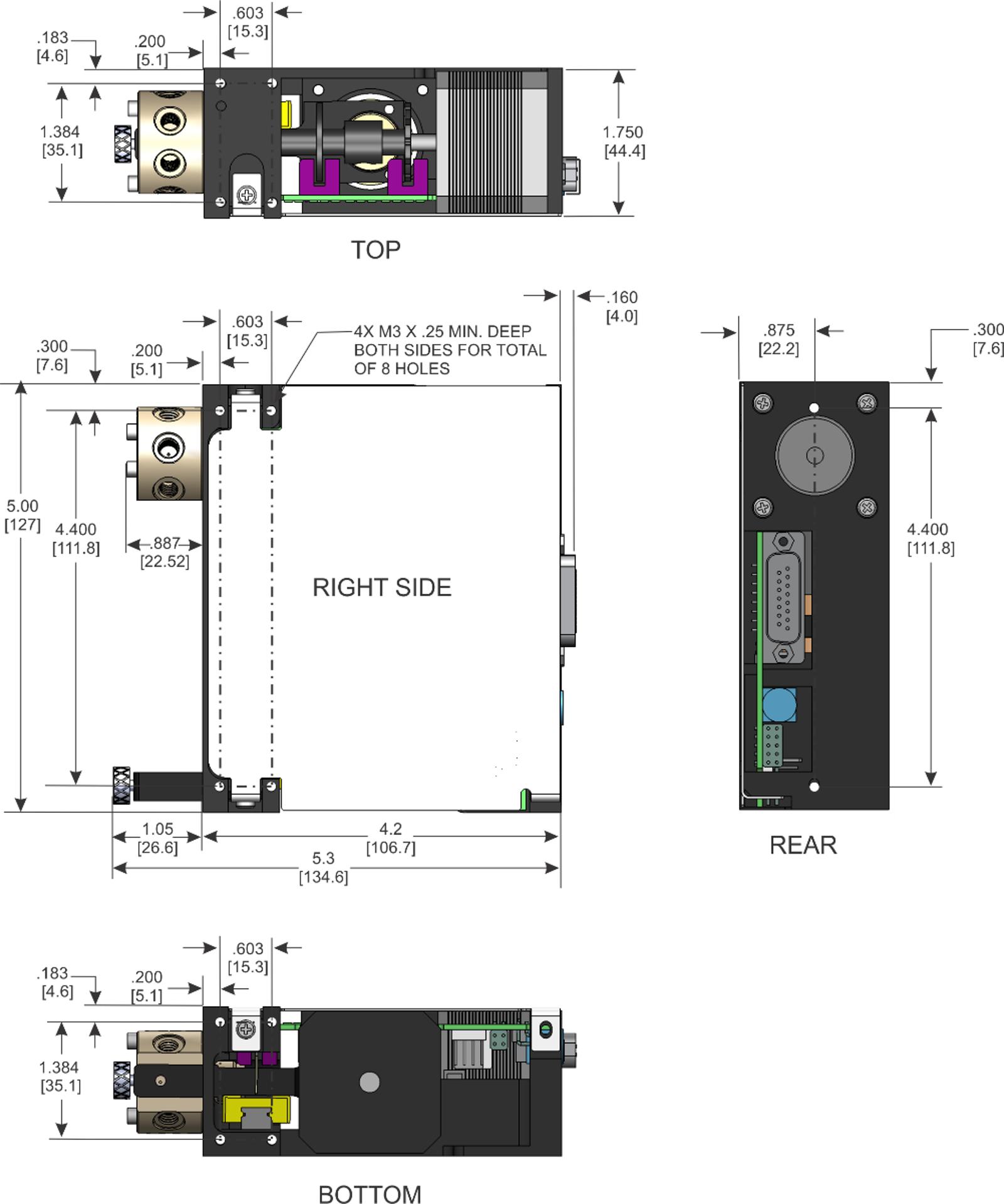

C-SERIES WITH MULTIPORT VALVE INTERFACE DETAILS

ALL MOUNTING HOLES ARE M3 X 0.5mm X 6.3 mm DEEP MINIMUM

ALL DIMENSIONS UNLESS OTHERWISE SPECIFIED ARE .XXX + .008 [.02 mm]

C3000 Pumps

Catalog #	Description
10010	C3000 with 120° 3-port Valve (PEEK/UHMWPE)
10011	C3000 with 120° 3-port Valve (PEEK/PTFE)
10012	C3000 with 120° 3-port Valve (PCTFE/UHMWPE)
10013	C3000 with 120° 3-port Valve (PCTFE/PTFE)
10030	C3000 with 90° 4-port Valve (PEEK/UHMWPE)
10031	C3000 with 90° 4-port Valve (PEEK/PTFE)
10032	C3000 with 90° 4-port Valve (PCTFE/UHMWPE)
10033	C3000 with 90° 4-port Valve (PCTFE/PTFE)
10052	C3000 with Distribution 4-port Valve (PCTFE/UHMWPE)
10053	C3000 with Distribution 4-port Valve (PCTFE/PTFE)
10110	C3000 with T 3-Port Valve (PEEK/UHMWPE)
10120	C3000 with T 4-Port Valve (PEEK/UHMWPE)
10095	C3000MP with 6-way Distribution Valve (PCTFE/UHMWPE)
10114	C3000MP with 6-way Distribution Valve (PEEK/UHMWPE)

C24000 Pumps

Catalog #	Description
10018	C24000 with 120° 3-port Valve (PEEK/UHMWPE)
10019	C24000 with 120° 3-port Valve (PCTFE/UHMWPE)
10028	C24000 with 120° 3-port Valve (PEEK/PTFE)
10029	C24000 with 120° 3-port Valve (PCTFE/PTFE)
10038	C24000 with 90° 4-port Valve (PEEK/UHMWPE)
10039	C24000 with 90° 4-port Valve (PCTFE/UHMWPE)
10048	C24000 with 90° 4-port Valve (PEEK/PTFE)
10049	C24000 with 90° 4-port Valve (PCTFE/PTFE)
10059	C24000 with Distribution 4-port Valve (PCTFE/UHMWPE)
10069	C24000 with Distribution 4-port Valve (PCTFE/PTFE)
10099	C24000MP with 6-way Distribution Valve (PCTFE/UHMWPE)
10118	C24000MP with 6-way Distribution Valve (PEEK/UHMWPE)

Replacement Valves

Catalog #	Description
10020	120° 3-port, ¼ - 28 (PEEK/UHMWPE)
10021	120° 3-port, ¼ - 28 (PEEK/PTFE)
10022	120° 3-port, ¼ - 28 (PCTFE/UHMWPE)
10023	120° 3-port, ¼ - 28 (PCTFE/PTFE)
10040	90° 4-port, ¼ - 28 (PEEK/UHMWPE)
10041	90° 4-port, ¼ - 28 (PEEK/PTFE)
10042	90° 4-port, ¼ - 28 (PCTFE/UHMWPE)
10043	90° 4-port, ¼ - 28 (PCTFE/PTFE)
10062	Distribution 4-port, ¼ - 28 (PCTFE/UHMWPE)
10063	Distribution 4-port, ¼ - 28 (PCTFE/PTFE)
10115	T 3-Port, ¼ - 28 (PEEK/UHMWPE)
10125	T 4-Port, ¼ - 28 (PEEK/UHMWPE)
10106**	Distribution 6-way Distribution Valve (PCTFE/UHMWPE)
10113	Distribution 6-way Distribution Valve (PEEK/UHMWPE)

** 6-way distribution valve is only compatible with C3000MP and C24000MP syringe pumps (Cat# 10095 & 10099).

Syringes - 3 cm stroke (XP Style)

Catalog #	Description
10470	50 μL (UHMWPE)
10471	100 μL (UHMWPE)
10472	250 μL (UHMWPE)
10473	500 μL (UHMWPE)
10474	1 mL (UHMWPE)
10475	2.5 mL (UHMWPE)
10476	5 mL (UHMWPE)
10480	50 μL (PTFE)
10481	100 μL (PTFE)
10482	250 μL (PTFE)
10483	500 μL (PTFE)
10484	1 mL (PTFE)
10485	2.5 mL (PTFE)
10486	5 mL (PTFE)
10488	12.5 mL (PTFE)

Accessories

Catalog #	Description
10151	C-Series Evaluation Kit for use with all C-Series Pumps
	Includes: Power Supply, Tubing Kit, USB Converter/Cable Assembly and Quick Start Guide.
10171	Cable, RS232 to pump
10176	Evaluation Cable, RS232 and Bench to One C/MC-Series Device
10177	Evaluation Cable, USB to One C/MC-Series Device
10178	Evaluation Cable, XYZ to One C/MC-Series Device
10179	Cable, Daisy Chain Jumper
8152-09	Universal Power Supply
8246-71	Cable, Interface Converter to Pump
8698-02	USB/RS485 Converter
8698-03	Cable, USB-A/USB-B, 2-meter

C-SERIES ROTARY VALVE DATASHEET

C-SERIES SYRINGE PUMPS W/MULTIPORT DATASHEET

C-Series Syringe Pump Datasheet

C-Series Replacement Syringe Datasheet

C-Series Product Manual

Syringe Pump eDrawings

C-Series Syringe Pump with 3-port Valve Model

C-Series Syringe Pump with 4-port Valve Model

Syringe Pump with 6-way Valve Model

C-Series Warranty Information

TriContinent operates an ISO 13485 registered manufacturing facility that delivers the highest quality products. C-Series Pumps are general laboratory components not subject to FDA regulatory approval. TriContinent uses the highest quality components with applicable safety markings to meet the needs of system designers. C-Series Pumps do not carry independent CE markings as they are components designed for use within larger systems which are subject to independent testing and certification.

We stand behind the C-Series Pumps with a 1-year warranty. During the warranty period, should a C-Series Pump fail, call us with an explanation of malfunction and TriContinent will issue a Return Material Authorization (RMA) number for repair or replacement at our discretion, at no charge.

TriContinent also guarantees its Valves to be free of defects in materials and workmanship for 1-year. Any valve, which fails due to such defects, will be repaired or replaced at our dscretion at no charge provided the device is returned through our RMA process.

It is the responsibility of the customer to determine the suitability of an application and the material compatibility of our product with your application.When returning a product for repair or replacement, please contact TriContinent Customer Service to receive an RMA number. When calling please be sure to have the following information available:

Catalog Number
Serial Number
Explanation of Malfunction

TriContinent will not accept the return of any product with out prior approval. TriContinent reserves the right to refuse a return of product that has been used with infectious microbiological or radioactive substances or any other materials that may be deemed hazardous.

The RMA number should be referenced on the outside of the shipping container when returning to TriContinent.

Warranty Exclusions

The above warranty shall not apply for defective products resulting from:

Improper or Inadequate maintenance by the customer
Unauthorized maintenance or service
Customer misuse
Operation outside of the environmental specifications for the product
Instruments returned without proper packaging

There is no warranty expressed for the following products:

Syringes
Plungers

Note: For equipment damaged in shipping, please contact the shipper directly.
